o2S2PARC API REST API and Python Interface to o2S2PARC

• a REST API for o2S2PARC exists that permits scripted access and use of o2S2PARC
• a corresponding Python client has been implemented

---

From ITISFoundation/osparc-simcore#503

Background
Allow oSPARC use through a non-GUI API (scripting, other). This includes creating a REST API as well as a Python client.

Definition of Done
Python interface can be used for:

• authentication
• load/save project
• setup pipeline
• display/export results

[pcrespov]

Update Brown Islands sprint:

• Implementing two API gateways. One for the web application (osparc.io) and another for public use (i.e. third-parties and/or our python sdk)


[odeimaiz]

Update Mythos sprint

1. Web API Gateway:

   • cleanup API
   • starting designing decoupling

2. Public API Gateway:

   • front-end: Create tokens from Preferences window.
   • back-end: implements a concept but not integrated
     - Authenticate (oauth2 with client credentials flow)
     - List studies (access control: roles)
     - fancy doc and interactive doc

3. Python client: prototype autogenerated from OAS. Evaluated options but not convinced it is the best solution.

[pcrespov]

Update Mid-sprint Zhong Zi

Current Status

• standalone service for public API gateway [ongoing]
  • Minimal API published to fulfill user-story
  • Auto-documentation with client-sdk examples (see below)
• python client SDK [ongoing]
  • prototype autogenerated from OAS does not offer best solution.
  • building a template generator
• prototype of front-end UI to create API tokens (see above)
• emphasis in maintainability
• connected front-end UI with webserver

Next Steps

• release beta version of python-sdk to (human) testers (black/blue team?). Feedback shall
  • complete documentation
  • refine interface
  • fix issues

Given that now we enabled two ways to access osparc functionality (i.e. via public API and website), we need some continues refactoring on the backend as the API extends. For instance:

• connect public gateway service to backend core services
• detaching functionality from web-server service and delegating to other micro-services. e.g.
  • authentication service: responsible to centralize all authorization
  • projects management: responsible of user studies

[pcrespov]

Update on C.Maurer sprint for review

Current Status

The infrastructure for the osparc public API is complete*:

• osparc exposes a public RESTful API. The url depends on the deployed environment, e.g. api.osparc.io or api.staging.osparc.io (see details )
• A python client SDK is publicly available with instructions/examples; and can be installed in python3.
• User can obtain credentials for the API directly in the UI under Preferences -> API Keys menu

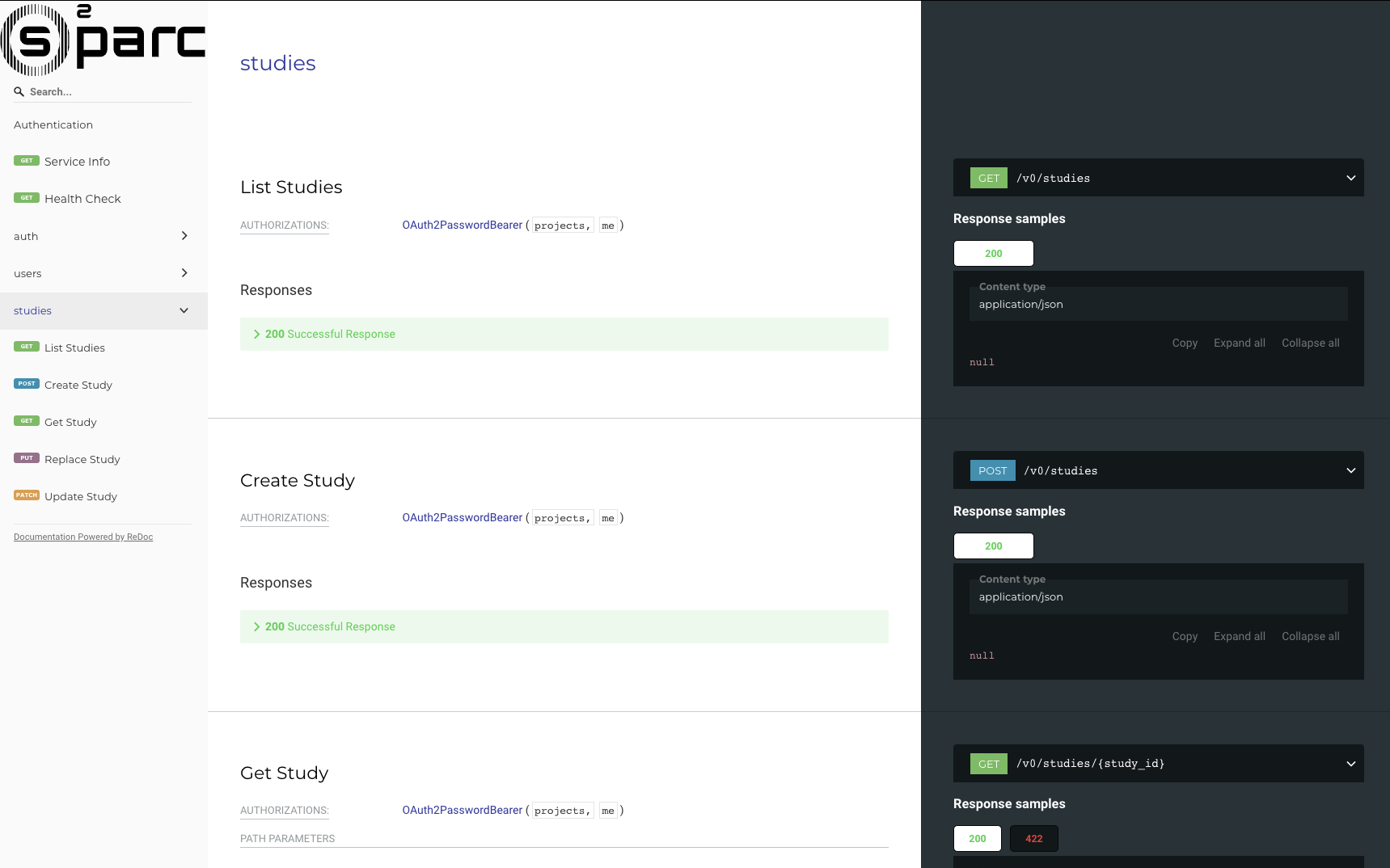

• Interactive documentation is available online for testing and reference

Currently only minimal functionality has been exposed in order to

• wait for a stable version of new ongoing features, like organizations, collaboration, etc
  which are currently under development
• Test maintainability of the designed workflow: from openapi specifications -> server stub -> client SDK.
• Further split functionality in backend services. Until now, all services were dedicated to a single web client. This is one of the biggest challenges of this case.

Next steps

• release API to staging (coming days) so all testers can start using it and provide feedback
• start defining more practical use cases (e.g. see notes about s4l simulations in everybody at z43 uses osparc for python/matlab scripting #68) and present them in jupyter notebooks.

The API will be in constant evolution and hand-in-hand with new planned features. For that reason there will be a constant work on

• improving release workflow and maintainability for the framework
• Splitting functionality in the backend between public and web APIs.

* NOTE PR is under review, expected deployment in master in the coming days and in staging by the end of the coming sprint.

[esraneufeld]

see as well the related comments at the bottom of #68 (running s4l simulations on osparc by button press). this could be a use case for the api
