Component Div inside tab cannot render when upgrading from dash 1.6.1 to 1.7.0

[ycaokris]

App related: https://github.com/plotly/dash-sample-apps/tree/master/apps/dash-manufacture-spc-dashboard
Callback related: https://github.com/plotly/dash-sample-apps/blob/854b8df105e24b04f6b3f9124c016f1e01b23691/apps/dash-manufacture-spc-dashboard/app.py#L943-L993

• replace the result of pip list | grep dash below

dash                 1.7.0
dash-core-components 1.6.0
dash-daq             0.4.0
dash-html-components 1.0.2
dash-renderer        1.2.2
dash-table           4.5.1

• if frontend related, tell us your Browser, Version and OS

  • OS: [e.g. iOS]: MacOS Mojave
  • Browser [e.g. chrome, safari]: MacOS Chrome Version 80.0.3987.132 (Official Build) (64-bit), Firefox 73.0.1

Describe the bug

Div(as callback Output) within tab1 cannot be updated by dropdown in the same tab after dropdown option change - > tab switching back.

Expected behavior

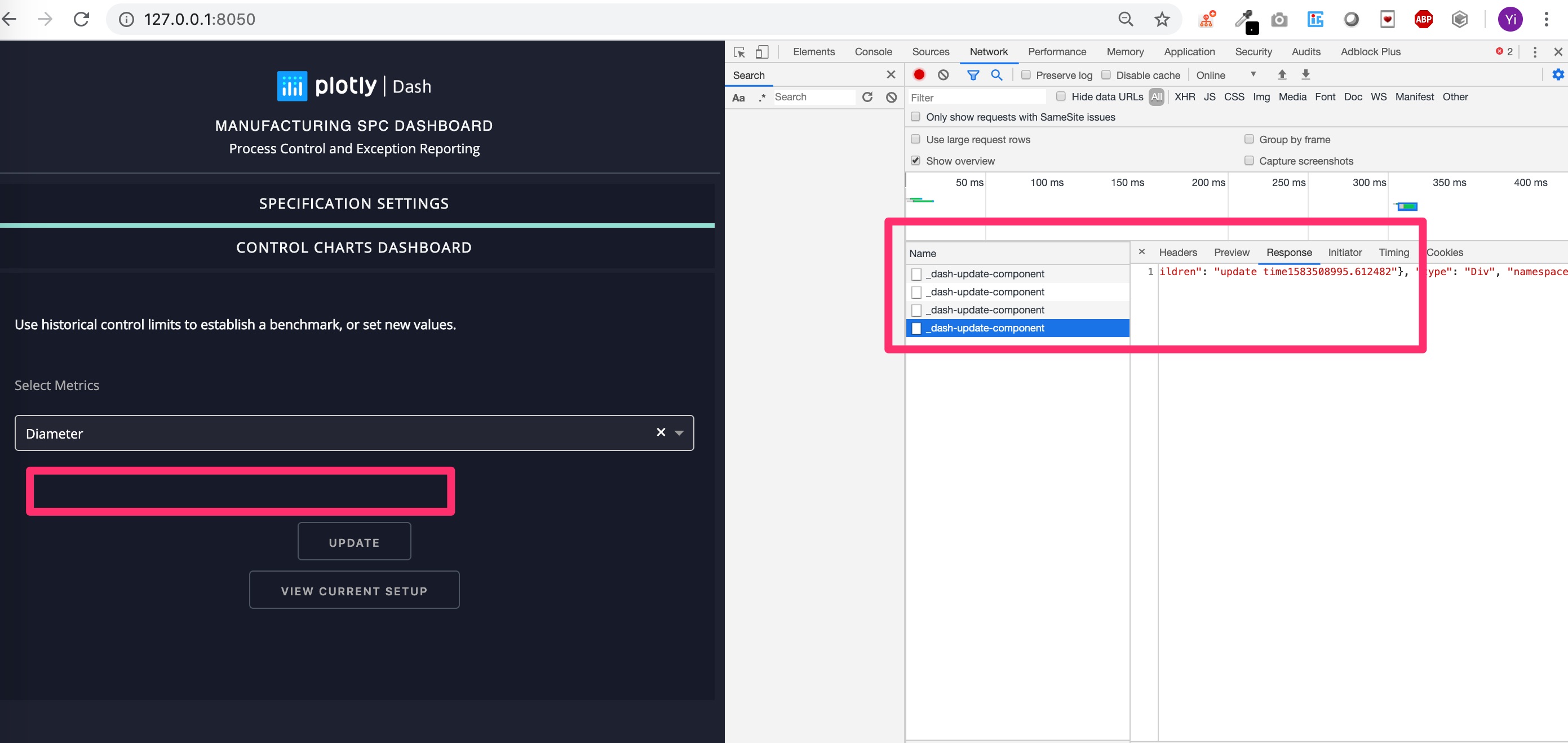

I noticed this problem when updating from dash1.6.1 to dash1.7.0. As shown on the gif below, a callback is fired from dropdown selection within first tab to update the control sections on the right. This section doesn't render for me for dash1.7.0 when I : 1) Click on tab1 2) change dropdown value to a different one 3) Navigate to tab2 then Navigate back to tab1.

I've tried to simplify the output to an individual html.Div("update time" + str(time.time())), and still behaves the same. My callback is fired as usual upon tab navigation/dropdown-toggling. Looking into dev-tool has indicated that the dash_update_component has been sent back to front-end, so I wonder it could simply be a render-related issue.

[alexcjohnson]

This looks similar to several of the bugs that are fixed in #1103 - @ycaokris would you be able to try it off that branch? You have to rebuild the renderer after pulling the branch down.

[ycaokris]

@alexcjohnson It worked with this rebuild 👍 and I don't see this issue happening. Here's dev env:

(venv) ➜  dash-manufacture-spc-dashboard git:(master) ✗ pip list | grep dash
dash                            1.9.1      /Users/yicao/PycharmProjects/dash
dash-core-components            1.8.1
dash-dangerously-set-inner-html 0.0.2
dash-flow-example               0.0.5
dash-html-components            1.0.2
dash-renderer                   1.2.4      /Users/yicao/PycharmProjects/dash/dash-renderer
dash-table                      4.6.1

[alexcjohnson]

Great! Thanks for testing it. I'll mark the PR as closing this issue.
