multi-line axis titles unable to push margins

[laura-cbre]

Automargin updates margin size correctly if axis title is large, due to say using a large font.
However, it does not update margin size if axis title is large due to line breaks.

fig.update_xaxes({'title_text': 'hiya', 'title_font': {'size': 100}, 'automargin': True})

fig.update_xaxes({'title_text': 'h<br>i<br>y<br>a', 'title_font': {'size': 100}, 'automargin': True})

Their data attributes:

(Scatter({
     'hoverinfo': 'x+name+text',
     'line': {'color': '#e53935'},
     'marker': {'color': '#e53935', 'line': {'color': '#e53935'}},
     'mode': 'lines',
     'name': 'a',
     'text': [1.000, 2.000, 3.000, 4.000],
     'x': array([datetime.datetime(2018, 1, 1, 0, 0),
                 datetime.datetime(2018, 1, 5, 0, 0),
                 datetime.datetime(2018, 1, 8, 0, 0),
                 datetime.datetime(2018, 1, 15, 0, 0)], dtype=object),
     'y': array([1, 2, 3, 4])
 }),)

First chart's layout attribute

Layout({
    'title': {'text': ''},
    'xaxis': {'automargin': True, 'title': {'font': {'size': 100}, 'text': 'hiya'}},
    'yaxis': {'rangemode': 'normal', 'title': {'text': 'degC'}}
})

Second chart's layout attribute

Layout({
    'title': {'text': ''},
    'xaxis': {'automargin': True, 'title': {'font': {'size': 100}, 'text': 'h<br>i<br>y<br>a'}},
    'yaxis': {'rangemode': 'normal', 'title': {'text': 'degC'}}
})

[etpinard]

Multi-line axis titles are in fact considered in the axis automargin computations (see example: https://codepen.io/etpinard/pen/MWWmoKV). For those interested, the logic is here:

plotly.js/src/plots/cartesian/axes.js

Lines 2718 to 2730 in 99fc02f

	function approxTitleDepth(ax) {
	var fontSize = ax.title.font.size;
	var extraLines = (ax.title.text.match(svgTextUtils.BR_TAG_ALL) || []).length;
	if(ax.title.hasOwnProperty('standoff')) {
	return extraLines ?
	fontSize * (CAP_SHIFT + (extraLines * LINE_SPACING)) :
	fontSize * CAP_SHIFT;
	} else {
	return extraLines ?
	fontSize * (extraLines + 1) * LINE_SPACING :
	fontSize;
	}
	}

The problem with your graph is that the automargin push caused by your very large (multi-line) axis title is too big and simply dropped. The logic is here:

plotly.js/src/plots/plots.js

Lines 1842 to 1851 in 99fc02f

	// if the item is too big, just give it enough automargin to
	// make sure you can still grab it and bring it back
	if(o.l + o.r > fullLayout.width * 0.5) {
	Lib.log('Margin push', id, 'is too big in x, dropping');
	o.l = o.r = 0;
	}
	if(o.b + o.t > fullLayout.height * 0.5) {
	Lib.log('Margin push', id, 'is too big in y, dropping');
	o.b = o.t = 0;
	}

In other words, having your axis title push the margin would leave almost no room for the subplot, so we drop it.

I understand the behaviour is debatable (more info in #771 (comment)), but we decided not to change it in the v1.x series. We might consider improvements for upcoming major releases.

[laura-cbre]

Hi etpinard thanks for your reply.

In that case the multi-line maximum size is smaller than the single line maximum size as shown below:

sc.chart_fig.update_xaxes({'title_text': 'hiya', 'title_font': {'size': 230}, 'automargin': True})

Automargin stops working for just 5 lines, at font size 12

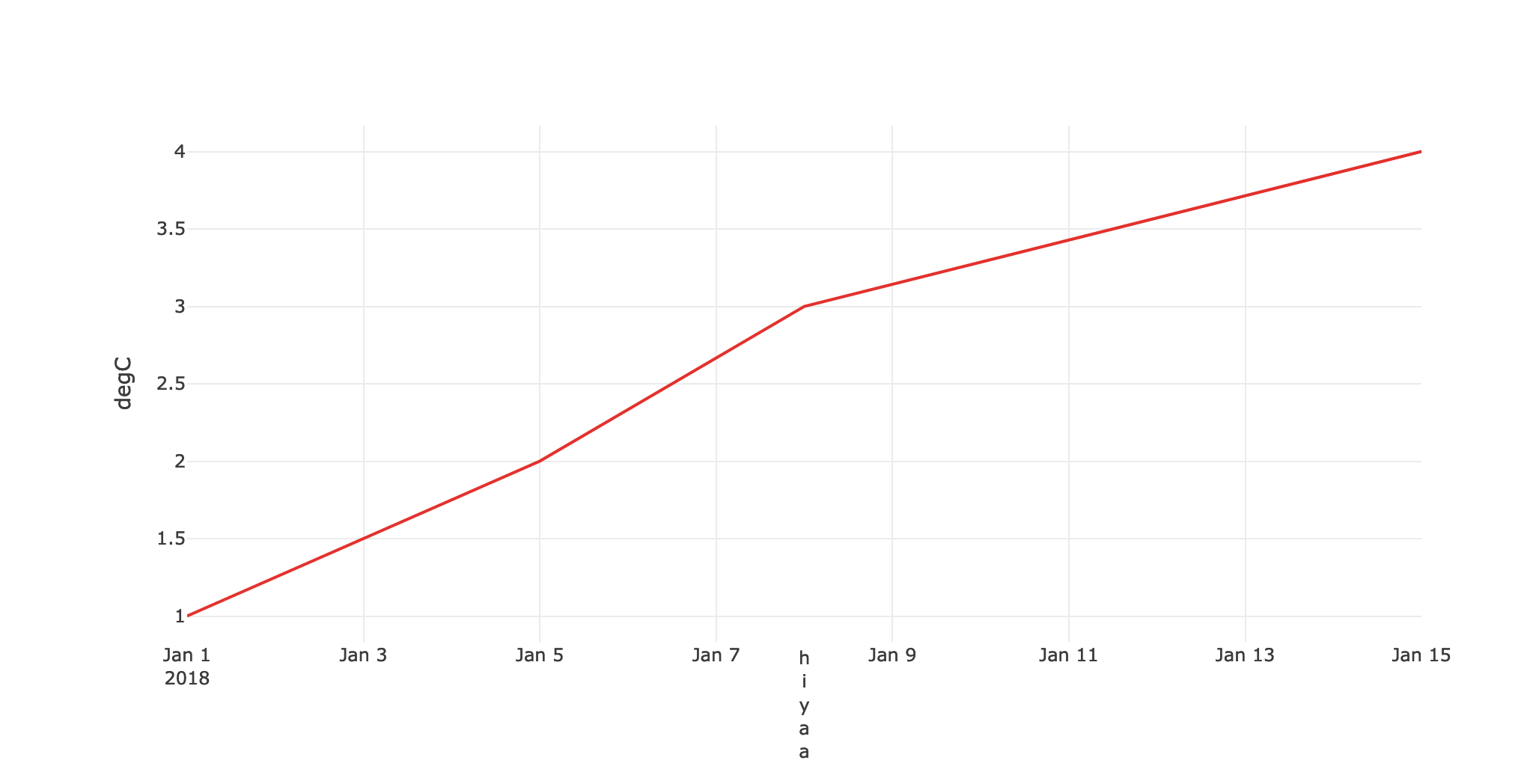

sc.chart_fig.update_xaxes({'title_text': 'h<br>i<br>y<br>a<br>a','title_font': {'size': 12}, 'automargin': True})

Is there a way of asking if its a subplot, and if not, not impose a maximum size?

The reason I'm asking is there is no chart caption functionality. So I need to either use the xaxis title or annotations as a workaround for adding a chart caption. Ideally I'd be able to add up to 20 lines.

The layout objects of the above charts:

Layout({
    'title': {'text': ''},
    'xaxis': {'automargin': True, 'title': {'font': {'size': 230}, 'text': 'hiya'}},
    'yaxis': {'rangemode': 'normal', 'title': {'text': 'degC'}}
})

Layout({
    'title': {'text': ''},
    'xaxis': {'automargin': True, 'title': {'font': {'size': 12}, 'text': 'h<br>i<br>y<br>a<br>a'}},
    'yaxis': {'rangemode': 'normal', 'title': {'text': 'degC'}}
})

[etpinard]

Automargin stops working for just 5 lines, at font size 12

In general, automargin will "stop working" when the push value is greater than half of the graph's height.

Is there a way of asking if its a subplot, and if not, not impose a maximum size?

I'd recommend setting the bottom margin yourself using layout.margin.b

[laura-cbre]

In general, automargin will "stop working" when the push value is greater than half of the graph's height.

It seems newlines impact the push value disproportionately. Unfortunately I don't know js, but is the push value ~= font size * # lines * line spacing? Could line spacing be reduced by some scalar to remedy this?

I'd recommend setting the bottom margin yourself using layout.margin.b

I will have many charts, each with a different number of lines, so I will have to write some hacky code to increase layout.margin.b as some function of the number of lines. I was just hoping I could avoid this.

In other words, having your axis title push the margin would leave almost no room for the subplot, so we drop it.

Oh sorry by subplot you mean the actual chart, I thought you meant for cases when there are multiple subplots in the same figure.

[archmoj]

The problem appear to be related to computing the size of multi-line text.
Here is a minimal codepen.
