Support for inline math using LaTeX

[Yeeler]

I have quite lot of markdown files which contain many latex equations.
How can I get them show up properly in vuepress?

e.g.
$J \left( \theta_0, \theta_1 \right) = \frac{1}{2m}\sum\limits_{i=1}^m \left( h_{\theta}(x^{(i)})-y^{(i)} \right)^{2}$

[imfing]

You can customize by yourself.
There are instructions here 👉 #113

[Yeeler]

Latex has different syntax from Katex. Markdown-it-katex didn't work on latex. I tried many other markdown plugins, including markdown-it-latex, markdown-it-mathjax, amd markdown-it-texmath etc. No luck.

When I was previewing markdown files in VS Code, I can see the above equation with a plug-in named 'markdown-math' installed. Why l can't do the same in Vuepress?

My current solution is using https://www.codecogs.com/eqnedit.php to insert an equation image. Is there any better choice? How can I show latex equation in node JS? What package should I use?

[imfing]

Katex is a library for TeX math rendering, not a new kind of TeX syntax.

Following the guide in #113 , you'll get your inline math equation parsed and rendered correctly.

For all the functions supported in Katex, you may check its official doc KaTeX/function-support

It's enough for you to handle 99% of the cases like the cost function shown above.

[Yeeler]

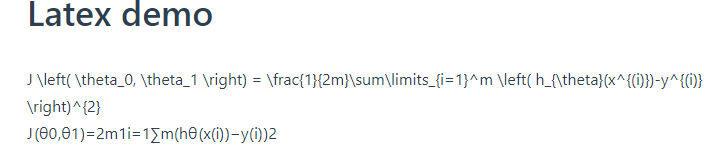

I don't know how to add Katex CSS into my theme, but I did all the other steps. And I got

this is my markdown file:

Latex demo

$J \left( \theta_0, \theta_1 \right) = \frac{1}{2m}\sum\limits_{i=1}^m \left( h_{\theta}(x^{(i)})-y^{(i)} \right)^{2}$

Can you please provide your vuepress project? Thanks for your help.

[imfing]

Seems that you didn't include the <link> in your markdown file.

• Add the css in your page README.md

# This is a markdown file

<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/KaTeX/0.5.1/katex.min.css">

<link rel="stylesheet" href="https://cdn.jsdelivr.net/github-markdown-css/2.2.1/github-markdown.css"/>

$J \left( \theta_0, \theta_1 \right) = \frac{1}{2m}\sum\limits_{i=1}^m \left( h_{\theta}(x^{(i)})-y^{(i)} \right)^{2}$

I have created a sample skeleton in vuepress-homepage which might be helpful for your configuration.

The raw README.md file and the rendered page: Demo
Check the config.js of mine so you could have ideas of where to modify. 😉

[Yeeler]

you are right. I missed the css. I didn't know that we can apply css in markdown file in this way.

I copied default theme by run 'vuepress eject docs'
then I modified 'D:_GIT\vue01\docs.vuepress\theme\Layout.vue'
append '<style src="markdown-it-katex/node_modules/katex/dist/katex.min.css"></style>'

finally, all worked.

[meteorlxy]

Add css in head field of config.js might be a better choice.

[ulivz]

See: #113 (comment)

Closing as this can be done in userland.

[OnceMore2020]

configure head in config.js, like this:

module.exports = {
    head: [
        ['link', { rel: 'stylesheet', href: 'https://cdnjs.cloudflare.com/ajax/libs/KaTeX/0.5.1/katex.min.css' }]
    ],
    ...

would be more elegant.

[Yeeler]

yeah I like it.

[faroit]

I actually couldn't find the info that its possible to add custom headers without ejecting the theme. This is great! Maybe this could go into the documentation!

[faroit]

actually couldn't find the info that its possible to add custom headers without ejecting the theme

🙈 I missed that, sorry

[RyanGreenup]

If anybody else is facing a similar problem and really wants to use MathJax rather than KaTeX (in order to support \label{} in an align environment rather than merely \tag{] in an \[ aligned \] environment for instance) a similar thing can be done by injecting the cdnjs MathJax script:

<script type="text/javascript" async
  src="https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.5/MathJax.js?config=TeX-MML-AM_CHTML">
</script>

Which can be acheived in VuePress, as described in the manual by adding the following to the .vuepress/config.js:

head: [
  ['script',
    { type: '"text/javascript" async',
    src: 'https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.5/MathJax.js?config=TeX-MML-AM_CHTML'
    }
  ]
],

This wouldn't be worth adding to this issue, but the new community vuepress-plugin-mathjax plugin does not render LaTeX in an aligned environment and the deprecated latex plugin doesn't quite render the math in a way that looks correct:

$$
\begin{aligned}
         0 &= ax^2 +bx +c
\implies x &= \frac{- b \pm \sqrt{b^2- 4ac} }{2a}
\end{aligned}
$$

This method was suggestested but not detailed in #113 by songololo.

[BruceYuj]

@RyanGreenup I use your method to fix some syntax like $$\begin{cases} \end{cases}$$, but it didn't work. I use the community plugin - vuepress-plugin-mathjax and manually inject Mathjax script. Can you help me?
