CUDA: deduplicate FlashAttention code

[JohannesGaessler]

Follow-up to #7314 .

This PR deduplicates the CUDA FlashAttention code, mainly the code around launching the kernels. For the kernels themselves I only deduplicated the ALiBi slope calculation.

There are also two minor fixes:

• Fixed the vec kernels write the meta data multiple times to VRAM.
• Fixed the tensor core kernel launch code calculating the number of blocks as parallel_blocks*(Q->ne[1] + cols_per_block - 1) / cols_per_block instead of parallel_blocks*((Q->ne[1] + cols_per_block - 1) / cols_per_block). I don't think that there is a case on master with which this leads to incorrect results though.

[github-actions]

📈 llama.cpp server for bench-server-baseline on Standard_NC4as_T4_v3 for phi-2-q4_0: 544 iterations 🚀

Expand details for performance related PR only

• Concurrent users: 8, duration: 10m
• HTTP request : avg=8605.39ms p(95)=20901.68ms fails=, finish reason: stop=492 truncated=52
• Prompt processing (pp): avg=96.78tk/s p(95)=381.39tk/s
• Token generation (tg): avg=58.33tk/s p(95)=47.55tk/s
• ggml-org/models/phi-2/ggml-model-q4_0.gguf parallel=8 ctx-size=16384 ngl=33 batch-size=2048 ubatch-size=256 pp=1024 pp+tg=2048 branch=cuda-fattn-refactor-4 commit=4d9e90ca98f24d905827199e9427c1a2f83ccef2

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 544 iterations"
    y-axis "llamacpp:prompt_tokens_seconds"
    x-axis "llamacpp:prompt_tokens_seconds" 1716026972 --> 1716027600
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 773.96, 773.96, 773.96, 773.96, 773.96, 714.88, 714.88, 714.88, 714.88, 714.88, 719.83, 719.83, 719.83, 719.83, 719.83, 759.84, 759.84, 759.84, 759.84, 759.84, 817.85, 817.85, 817.85, 817.85, 817.85, 813.36, 813.36, 813.36, 813.36, 813.36, 821.49, 821.49, 821.49, 821.49, 821.49, 839.16, 839.16, 839.16, 839.16, 839.16, 831.5, 831.5, 831.5, 831.5, 831.5, 845.33, 845.33, 845.33, 845.33, 845.33, 843.42, 843.42, 843.42, 843.42, 843.42, 848.63, 848.63, 848.63, 848.63, 848.63, 878.25, 878.25, 878.25, 878.25, 878.25, 875.33, 875.33, 875.33, 875.33, 875.33, 899.81, 899.81, 899.81, 899.81, 899.81, 839.65, 839.65, 839.65, 839.65, 839.65, 836.19, 836.19, 836.19, 836.19, 836.19, 835.46, 835.46, 835.46, 835.46, 835.46, 856.09, 856.09, 856.09, 856.09, 856.09, 858.08, 858.08, 858.08, 858.08, 858.08, 856.08, 856.08, 856.08, 856.08, 856.08, 862.13, 862.13, 862.13, 862.13, 862.13, 865.15, 865.15, 865.15, 865.15, 865.15, 882.96, 882.96, 882.96, 882.96, 882.96, 877.6, 877.6, 877.6, 877.6, 877.6, 878.95, 878.95, 878.95, 878.95, 878.95, 875.58, 875.58, 875.58, 875.58, 875.58, 870.54, 870.54, 870.54, 870.54, 870.54, 870.14, 870.14, 870.14, 870.14, 870.14, 870.88, 870.88, 870.88, 870.88, 870.88, 874.42, 874.42, 874.42, 874.42, 874.42, 872.21, 872.21, 872.21, 872.21, 872.21, 875.59, 875.59, 875.59, 875.59, 875.59, 873.15, 873.15, 873.15, 873.15, 873.15, 877.23, 877.23, 877.23, 877.23, 877.23, 876.48, 876.48, 876.48, 876.48, 876.48, 872.57, 872.57, 872.57, 872.57, 872.57, 870.41, 870.41, 870.41, 870.41, 870.41, 869.05, 869.05, 869.05, 869.05, 869.05, 872.78, 872.78, 872.78, 872.78, 872.78, 874.03, 874.03, 874.03, 874.03, 874.03, 859.56, 859.56, 859.56, 859.56, 859.56, 863.11, 863.11, 863.11, 863.11, 863.11, 860.19, 860.19, 860.19, 860.19, 860.19, 858.35, 858.35, 858.35, 858.35, 858.35, 857.54, 857.54, 857.54, 857.54, 857.54, 855.33, 855.33, 855.33, 855.33, 855.33, 847.24, 847.24, 847.24, 847.24, 847.24, 846.17, 846.17, 846.17, 846.17, 846.17, 848.42, 848.42, 848.42, 848.42, 848.42, 849.23, 849.23, 849.23, 849.23, 849.23, 853.08, 853.08, 853.08, 853.08, 853.08, 850.8, 850.8, 850.8, 850.8, 850.8, 855.84, 855.84, 855.84, 855.84, 855.84, 857.48, 857.48, 857.48, 857.48, 857.48, 858.01, 858.01, 858.01, 858.01, 858.01, 856.92, 856.92, 856.92, 856.92, 856.92, 857.51, 857.51, 857.51, 857.51, 857.51, 858.93, 858.93, 858.93, 858.93, 858.93, 858.59, 858.59, 858.59, 858.59, 858.59]


Loading

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

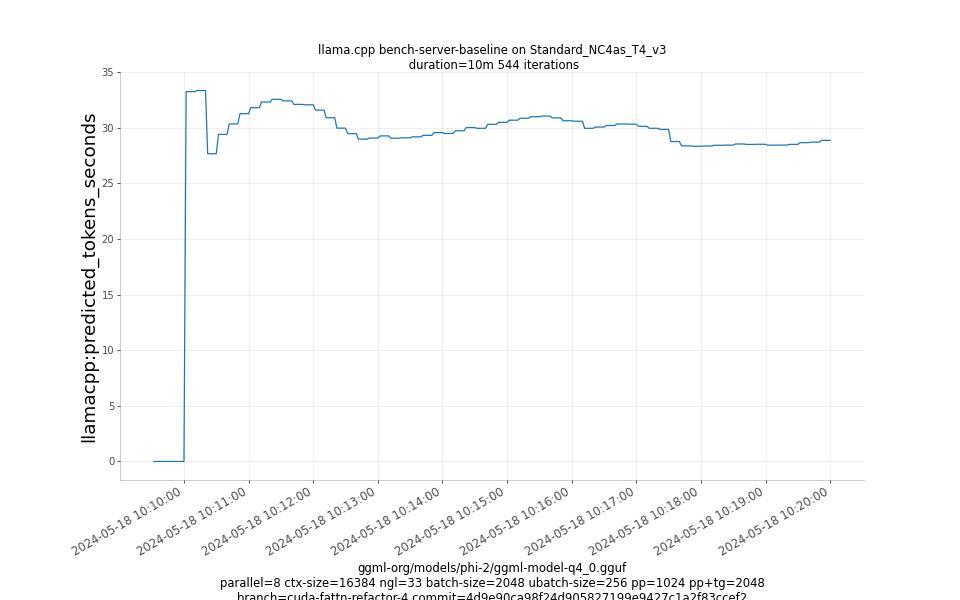

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 544 iterations"
    y-axis "llamacpp:predicted_tokens_seconds"
    x-axis "llamacpp:predicted_tokens_seconds" 1716026972 --> 1716027600
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 33.25, 33.25, 33.25, 33.25, 33.25, 33.35, 33.35, 33.35, 33.35, 33.35, 27.67, 27.67, 27.67, 27.67, 27.67, 29.4, 29.4, 29.4, 29.4, 29.4, 30.35, 30.35, 30.35, 30.35, 30.35, 31.27, 31.27, 31.27, 31.27, 31.27, 31.81, 31.81, 31.81, 31.81, 31.81, 32.32, 32.32, 32.32, 32.32, 32.32, 32.56, 32.56, 32.56, 32.56, 32.56, 32.42, 32.42, 32.42, 32.42, 32.42, 32.11, 32.11, 32.11, 32.11, 32.11, 32.07, 32.07, 32.07, 32.07, 32.07, 31.59, 31.59, 31.59, 31.59, 31.59, 30.91, 30.91, 30.91, 30.91, 30.91, 29.97, 29.97, 29.97, 29.97, 29.97, 29.47, 29.47, 29.47, 29.47, 29.47, 28.98, 28.98, 28.98, 28.98, 28.98, 29.08, 29.08, 29.08, 29.08, 29.08, 29.27, 29.27, 29.27, 29.27, 29.27, 29.07, 29.07, 29.07, 29.07, 29.07, 29.1, 29.1, 29.1, 29.1, 29.1, 29.19, 29.19, 29.19, 29.19, 29.19, 29.32, 29.32, 29.32, 29.32, 29.32, 29.57, 29.57, 29.57, 29.57, 29.57, 29.49, 29.49, 29.49, 29.49, 29.49, 29.74, 29.74, 29.74, 29.74, 29.74, 30.02, 30.02, 30.02, 30.02, 30.02, 29.95, 29.95, 29.95, 29.95, 29.95, 30.31, 30.31, 30.31, 30.31, 30.31, 30.49, 30.49, 30.49, 30.49, 30.49, 30.69, 30.69, 30.69, 30.69, 30.69, 30.86, 30.86, 30.86, 30.86, 30.86, 31.0, 31.0, 31.0, 31.0, 31.0, 31.06, 31.06, 31.06, 31.06, 31.06, 30.89, 30.89, 30.89, 30.89, 30.89, 30.63, 30.63, 30.63, 30.63, 30.63, 30.59, 30.59, 30.59, 30.59, 30.59, 29.95, 29.95, 29.95, 29.95, 29.95, 30.07, 30.07, 30.07, 30.07, 30.07, 30.21, 30.21, 30.21, 30.21, 30.21, 30.34, 30.34, 30.34, 30.34, 30.34, 30.33, 30.33, 30.33, 30.33, 30.33, 30.13, 30.13, 30.13, 30.13, 30.13, 29.96, 29.96, 29.96, 29.96, 29.96, 29.86, 29.86, 29.86, 29.86, 29.86, 28.77, 28.77, 28.77, 28.77, 28.77, 28.37, 28.37, 28.37, 28.37, 28.37, 28.34, 28.34, 28.34, 28.34, 28.34, 28.36, 28.36, 28.36, 28.36, 28.36, 28.43, 28.43, 28.43, 28.43, 28.43, 28.44, 28.44, 28.44, 28.44, 28.44, 28.54, 28.54, 28.54, 28.54, 28.54, 28.51, 28.51, 28.51, 28.51, 28.51, 28.52, 28.52, 28.52, 28.52, 28.52, 28.44, 28.44, 28.44, 28.44, 28.44, 28.45, 28.45, 28.45, 28.45, 28.45, 28.51, 28.51, 28.51, 28.51, 28.51, 28.66, 28.66, 28.66, 28.66, 28.66, 28.71, 28.71, 28.71, 28.71, 28.71, 28.87, 28.87, 28.87, 28.87, 28.87]


Loading

Details

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

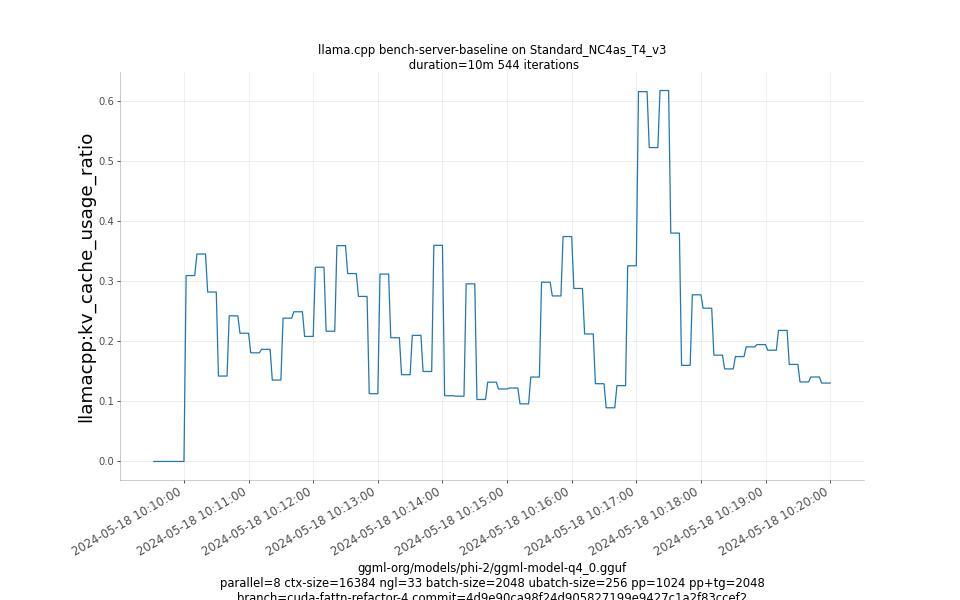

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 544 iterations"
    y-axis "llamacpp:kv_cache_usage_ratio"
    x-axis "llamacpp:kv_cache_usage_ratio" 1716026972 --> 1716027600
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.31, 0.31, 0.31, 0.31, 0.31, 0.35, 0.35, 0.35, 0.35, 0.35, 0.28, 0.28, 0.28, 0.28, 0.28, 0.14, 0.14, 0.14, 0.14, 0.14, 0.24, 0.24, 0.24, 0.24, 0.24, 0.21, 0.21, 0.21, 0.21, 0.21, 0.18, 0.18, 0.18, 0.18, 0.18, 0.19, 0.19, 0.19, 0.19, 0.19, 0.14, 0.14, 0.14, 0.14, 0.14, 0.24, 0.24, 0.24, 0.24, 0.24, 0.25, 0.25, 0.25, 0.25, 0.25, 0.21, 0.21, 0.21, 0.21, 0.21, 0.32, 0.32, 0.32, 0.32, 0.32, 0.22, 0.22, 0.22, 0.22, 0.22, 0.36, 0.36, 0.36, 0.36, 0.36, 0.31, 0.31, 0.31, 0.31, 0.31, 0.27, 0.27, 0.27, 0.27, 0.27, 0.11, 0.11, 0.11, 0.11, 0.11, 0.31, 0.31, 0.31, 0.31, 0.31, 0.21, 0.21, 0.21, 0.21, 0.21, 0.14, 0.14, 0.14, 0.14, 0.14, 0.21, 0.21, 0.21, 0.21, 0.21, 0.15, 0.15, 0.15, 0.15, 0.15, 0.36, 0.36, 0.36, 0.36, 0.36, 0.11, 0.11, 0.11, 0.11, 0.11, 0.11, 0.11, 0.11, 0.11, 0.11, 0.3, 0.3, 0.3, 0.3, 0.3, 0.1, 0.1, 0.1, 0.1, 0.1, 0.13, 0.13, 0.13, 0.13, 0.13, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.1, 0.1, 0.1, 0.1, 0.1, 0.14, 0.14, 0.14, 0.14, 0.14, 0.3, 0.3, 0.3, 0.3, 0.3, 0.28, 0.28, 0.28, 0.28, 0.28, 0.37, 0.37, 0.37, 0.37, 0.37, 0.29, 0.29, 0.29, 0.29, 0.29, 0.21, 0.21, 0.21, 0.21, 0.21, 0.13, 0.13, 0.13, 0.13, 0.13, 0.09, 0.09, 0.09, 0.09, 0.09, 0.13, 0.13, 0.13, 0.13, 0.13, 0.33, 0.33, 0.33, 0.33, 0.33, 0.62, 0.62, 0.62, 0.62, 0.62, 0.52, 0.52, 0.52, 0.52, 0.52, 0.62, 0.62, 0.62, 0.62, 0.62, 0.38, 0.38, 0.38, 0.38, 0.38, 0.16, 0.16, 0.16, 0.16, 0.16, 0.28, 0.28, 0.28, 0.28, 0.28, 0.25, 0.25, 0.25, 0.25, 0.25, 0.18, 0.18, 0.18, 0.18, 0.18, 0.15, 0.15, 0.15, 0.15, 0.15, 0.17, 0.17, 0.17, 0.17, 0.17, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.22, 0.22, 0.22, 0.22, 0.22, 0.16, 0.16, 0.16, 0.16, 0.16, 0.13, 0.13, 0.13, 0.13, 0.13, 0.14, 0.14, 0.14, 0.14, 0.14, 0.13, 0.13, 0.13, 0.13, 0.13]


Loading

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

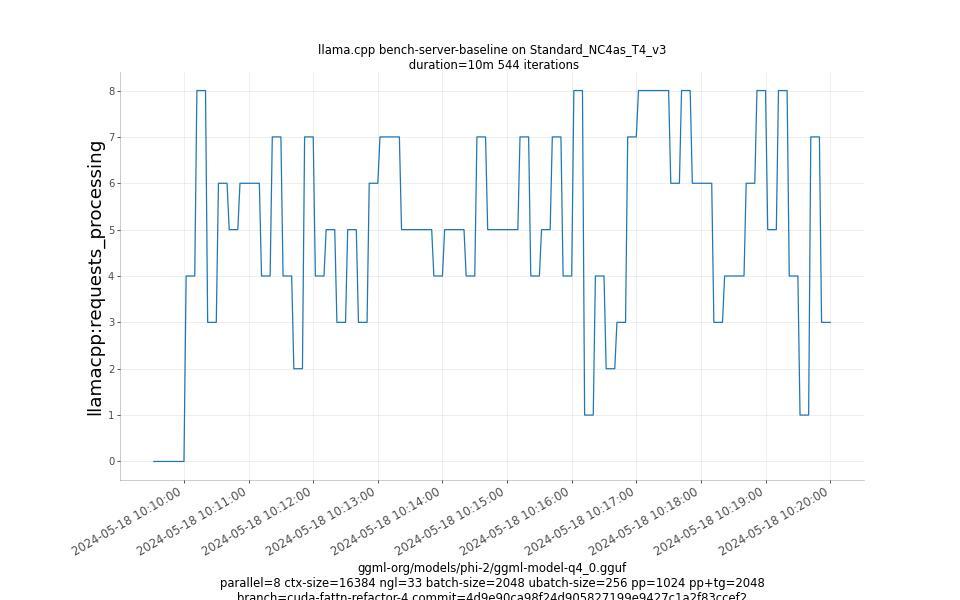

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 544 iterations"
    y-axis "llamacpp:requests_processing"
    x-axis "llamacpp:requests_processing" 1716026972 --> 1716027600
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 4.0, 4.0, 4.0, 4.0, 4.0, 8.0, 8.0, 8.0, 8.0, 8.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 4.0, 4.0, 4.0, 4.0, 4.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 2.0, 2.0, 2.0, 2.0, 2.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 8.0, 8.0, 8.0, 8.0, 8.0, 1.0, 1.0, 1.0, 1.0, 1.0, 4.0, 4.0, 4.0, 4.0, 4.0, 2.0, 2.0, 2.0, 2.0, 2.0, 3.0, 3.0, 3.0, 3.0, 3.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 3.0, 3.0, 3.0, 3.0, 3.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 8.0, 8.0, 8.0, 8.0, 8.0, 4.0, 4.0, 4.0, 4.0, 4.0, 1.0, 1.0, 1.0, 1.0, 1.0, 7.0, 7.0, 7.0, 7.0, 7.0, 3.0, 3.0, 3.0, 3.0, 3.0]


Loading
