SourceKitLSP: generate Swift textual interfaces for module references

[bwhiteley]

When doing a jump to definition on a Swift import statement, generate the textual interface for the module so the IDE can load the generated interface file.

[adam-fowler]

@ahoppen do you think this will work with my suggested path to displaying symbols in VSCode. swiftlang/vscode-swift#408

[ahoppen]

Thanks a lot for the PR. I think the idea of generating the .swiftinterfaces into a temporary directory is a good solution for now. @adam-fowler I have a vague memory that we discussed that LSP/VSCode has/will have a notion of generated/transient/non-disk files but I can’t find it anymore. Do you remember anything about it?

The implementation looks good to me overall, I have some comments inline. Also: Could you add a test case for jump to definition to symbols in other modules and a test case for a standalone open interface request?

[adam-fowler]

@adam-fowler I have a vague memory that we discussed that LSP/VSCode has/will have a notion of generated/transient/non-disk files but I can’t find it anymore. Do you remember anything about it?

That'll be in the issue I linked to swiftlang/vscode-swift#408 (comment)

[ahoppen]

Is there any precedence from language servers that use these kinds of transient documents or an LSP proposal? I think you are the best person to judge how the contents of the interface should be transferred to the editor. The nice thing about the temporary file implementation is that it will work for all editors.

[adam-fowler]

Is there any precedence from language servers that use these kinds of transient documents or an LSP proposal? I think you are the best person to judge how the contents of the interface should be transferred to the editor. The nice thing about the temporary file implementation is that it will work for all editors.

We can go with the temporary file solution. You'll need to be careful to ensure you generate separate versions of these for different swift versions.

[bwhiteley]

Thanks for the feedback. I've addressed the issues with the exception wanting to add a couple of more tests.

add a test case for jump to definition to symbols in other modules

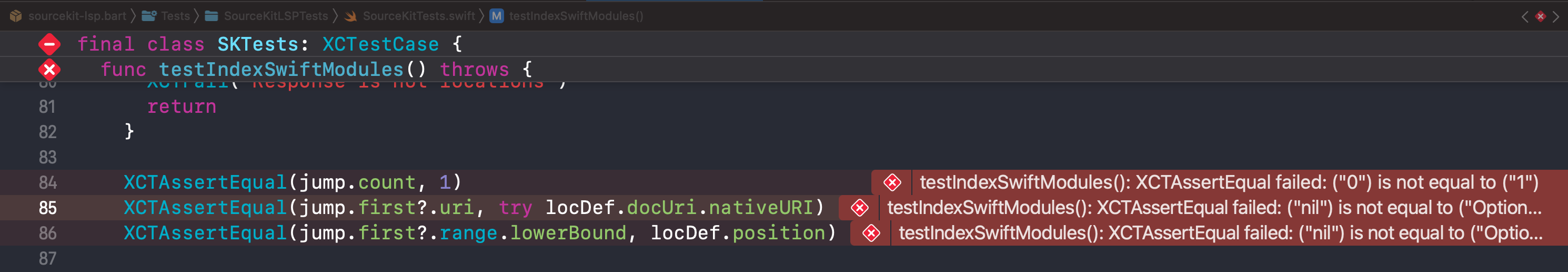

Is there an existing test that is similar to this that you could point me to? I've found a couple of candidates, but one of the challenges I am facing is that some of the tests fail for me even in upstream/main.
For example:

[ahoppen]

That’s odd that the tests are failing for you. They are passing fine for me locally. Which Xcode version are you using and are you using a Swift Open Source Toolchain? I’m using Xcode 14.0 with the default toolchain.

I think you can use Tests/SourceKitLSPTests/ImplementationTests.swift as a blueprint for your tests. I don’t think you need to check that many locations but the impls(at:) function should give you a good idea of how to invoke an LSP request in the tests.

[ahoppen]

Thanks for adding the test cases. I’ve added a few questions inline.

[ahoppen]

Thanks. This looks good to me. Let's get this merged. I've got one final comment inline. Could you also squash your commits after you've addressed the comment to create a nicer git history?

[ahoppen]

@swift-ci Please test

[ahoppen]

Thanks a lot for implementing this and addressing all my comments 🙏

This is a great features and I’m sure may people will love it ❤️

[ahoppen]

@swift-ci Please test

[artemcm]

Not sure how yet, but I think this is related to a failure in swift-driver Windows CI:
swiftlang/swift-driver#1240
https://ci-external.swift.org/job/swift-driver-PR-windows/227/console

C:\Users\swift-ci\jenkins\workspace\swift-driver-PR-windows\sourcekit-lsp\Sources\LanguageServerProtocol\Messages.swift:59:3: error: cannot find 'OpenInterfaceRequest' in scope
