Projector: Metadata editor

[francoisluus]

Add a metadata editor to the Projector, which gives the option to modify attributes of selected points. This is very helpful to make alterations and corrections to an existing labeling, although changes are only made in the browser session and do not persist to the metadata file.

Demo here: http://tensorserve.com:6015

git clone -b projector-metadata-editor https://github.com/francoisluus/tensorboard-supervise.git
cd tensorboard-supervise
git checkout 5c08357d3300f11d0a1776f4d7f76391e3edbad0
bazel run tensorboard -- --logdir /home/emnist-2000 --host 0.0.0.0 --port 6015

Design and behavior

1. The metadata editor only requires one extra row in the data panel.
2. The label button is disabled if no selection has been made, or if no label has been specified.
3. An attribute search is done to find the number of existing samples with the specified label.
4. Projector components related to metadata display are refreshed after attribute changes, which also expands the color palette for the modified attribute when a new class is added.
5. metadataChanged() is invoked in the projector after a metadata edit, which normally resets the attribute choices in the data panel and inspector panel. It is proposed that if there is an existing selection it should be retained if it is valid choice, which means that if another metadata file is loaded and it contains the selection it would be preferred.

Data panel before

Data panel with metadata editor

Label entered into metadata editor

[francoisluus]

Consider the below alternative implementation that makes full use of Polymer properties and events for the added elements, and reuses the paper-input label for state messaging. This implementation is cleaner, easier to modify/extend and the UI is sleeker. This revised branch can be found here: master...francoisluus:projector-metadata-editor-v2

Demo here: http://tensorserve.com:6018

git clone https://github.com/francoisluus/tensorboard-supervise.git
cd tensorboard-supervise
git checkout 6668297f21d03cb44c5ef811a774f97dfcae16b3
bazel run tensorboard -- --logdir /home/emnist-2000 --host 0.0.0.0 --port 6018

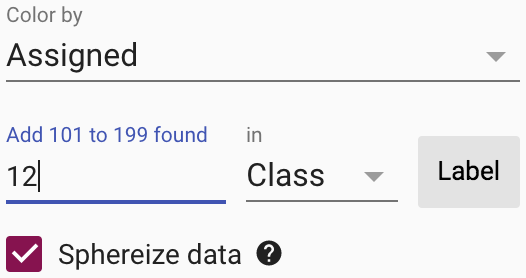

Status updates with paper-input label

[dsmilkov]

Hi @francoisluus ,

Thanks for another great addition. Two questions:

• Just to make sure I understand, in the image below (one of the images you posted), what does Add 101 to 199 found mean? Would be great to have more explicit messaging, even if it's more text and looks a bit crowded.

• Since the alternative implementation is easier to modify/extend, feel free to file a PR with that implementation, and close this PR.
