CivetWeb HTTP Sample - reduce RAM usage #28376

KozhinovAlexander · 2020-09-14T21:47:29Z

Reduce RAM memory usage by the CivetWeb HTTP sample

This PR solves #21179

KozhinovAlexander · 2020-09-14T21:47:53Z

@erwango Please review and test it.

tbursztyka · 2020-09-15T06:28:15Z

add "Fixes #21179" into your commit message

erwango · 2020-09-15T09:40:19Z

@Nukersson I'm not able to build samples/net/sockets/civetweb:

/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c: In function 'websocket_client_thread':
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17311:19: error: storage size of 'sa' isn't known
17311 |  struct sigaction sa;
      |                   ^~
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17315:18: error: 'SIG_IGN' undeclared (first use in this function)
17315 |  sa.sa_handler = SIG_IGN;
      |                  ^~~~~~~
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17315:18: note: each undeclared identifier is reported only once for each function it appears in
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17316:2: warning: implicit declaration of function 'sigaction' [-Wimplicit-function-declaration]
17316 |  sigaction(SIGPIPE, &sa, NULL);
      |  ^~~~~~~~~
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17316:12: error: 'SIGPIPE' undeclared (first use in this function); did you mean 'EPIPE'?
17316 |  sigaction(SIGPIPE, &sa, NULL);
      |            ^~~~~~~
      |            EPIPE
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17311:19: warning: unused variable 'sa' [-Wunused-variable]
17311 |  struct sigaction sa;
      |                   ^~

This isn't linked with your PR, nor the board. I'm seeing this also on master and on other board.
I'm using v2.4.0-rc1-118-gdc79b37167 (latest master), and run west update.

Do I miss something ?

KozhinovAlexander · 2020-09-15T09:50:51Z

@Nukersson I'm not able to build samples/net/sockets/civetweb:

/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c: In function 'websocket_client_thread':
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17311:19: error: storage size of 'sa' isn't known
17311 |  struct sigaction sa;
      |                   ^~
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17315:18: error: 'SIG_IGN' undeclared (first use in this function)
17315 |  sa.sa_handler = SIG_IGN;
      |                  ^~~~~~~
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17315:18: note: each undeclared identifier is reported only once for each function it appears in
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17316:2: warning: implicit declaration of function 'sigaction' [-Wimplicit-function-declaration]
17316 |  sigaction(SIGPIPE, &sa, NULL);
      |  ^~~~~~~~~
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17316:12: error: 'SIGPIPE' undeclared (first use in this function); did you mean 'EPIPE'?
17316 |  sigaction(SIGPIPE, &sa, NULL);
      |            ^~~~~~~
      |            EPIPE
/local/mcu/zephyrproject/modules/lib/civetweb/src/civetweb.c:17311:19: warning: unused variable 'sa' [-Wunused-variable]
17311 |  struct sigaction sa;
      |                   ^~

This isn't linked with your PR, nor the board. I'm seeing this also on master and on other board.
I'm using v2.4.0-rc1-118-gdc79b37167 (latest master), and run west update.

Do I miss something ?

Thanks for the testing. Yes, you're missing latest civetweb. Just add it to west.yaml file and provide west update. This change comes with my other PR (see #28323). Sorry, I did not expected this error in this case. If you want we can skype - then I will give you more explanations. Please let me know your test result of this PR.

KozhinovAlexander · 2020-09-15T10:30:44Z

@erwango I've just added updated west.yml file and corresponding PR for it. Thus, compiling this PR should work.

KozhinovAlexander · 2020-09-15T10:38:09Z

add "Fixes #21179" into your commit message

Done

samples/net/sockets/civetweb/src/main.c

erwango · 2020-09-15T13:33:21Z

I'm not able to test, but I can confirm the reduction of memory consumption.
Before:

Memory region         Used Size  Region Size  %age Used
           FLASH:      241096 B         2 MB     11.50%
             CCM:          0 GB        64 KB      0.00%
            SRAM:      236159 B       192 KB    120.12%
        IDT_LIST:         216 B         2 KB     10.55

After:

Memory region         Used Size  Region Size  %age Used
           FLASH:      125880 B         2 MB      6.00%
             CCM:          0 GB        64 KB      0.00%
            SRAM:       93295 B       192 KB     47.45%
        IDT_LIST:         216 B         2 KB     10.55%

KozhinovAlexander · 2020-09-15T13:51:59Z

I'm not able to test, but I can confirm the reduction of memory consumption.
Before:

Memory region         Used Size  Region Size  %age Used
           FLASH:      241096 B         2 MB     11.50%
             CCM:          0 GB        64 KB      0.00%
            SRAM:      236159 B       192 KB    120.12%
        IDT_LIST:         216 B         2 KB     10.55

After:

Memory region         Used Size  Region Size  %age Used
           FLASH:      125880 B         2 MB      6.00%
             CCM:          0 GB        64 KB      0.00%
            SRAM:       93295 B       192 KB     47.45%
        IDT_LIST:         216 B         2 KB     10.55%

Under not able do you mean - the server does not starts or you have some other problems?

erwango · 2020-09-15T13:54:16Z

Under not able do you mean - the server does not starts or you have some other problems?

Server doesn't start indeed, but I'm at home with limited test possibilities, so I haven't checked much more.
I should be able to test more at the office tomorrow.

KozhinovAlexander · 2020-09-15T18:00:38Z

Under not able do you mean - the server does not starts or you have some other problems?

Server doesn't start indeed, but I'm at home with limited test possibilities, so I haven't checked much more.
I should be able to test more at the office tomorrow.

Probably following advice would be helpful for you:

My observations shows, that civetweb server samples needed too much time to start up (sometimes about > 30 sec.). This behavior can be seen on current master's branch civetweb implementation and also on implementation of this PR.
Following thing can help: Ping the IP of your server. And as soon as the response comes - go to the server over your web browser.

P.S.: The fastest browser on my MacBook was Chrome. The Safari needed much more time to load pages from embedded CivetWeb server on my NUCLEO-H745ZI-Q board running @480MHz. Mozilla were not properly tested by me.

erwango · 2020-09-16T15:09:21Z

Under not able do you mean - the server does not starts or you have some other problems?

Server doesn't start indeed, but I'm at home with limited test possibilities, so I haven't checked much more.
I should be able to test more at the office tomorrow.

Probably following advice would be helpful for you:

My observations shows, that civetweb server samples needed too much time to start up (sometimes about > 30 sec.). This behavior can be seen on current master's branch civetweb implementation and also on implementation of this PR.
Following thing can help: Ping the IP of your server. And as soon as the response comes - go to the server over your web browser.

P.S.: The fastest browser on my MacBook was Chrome. The Safari needed much more time to load pages from embedded CivetWeb server on my NUCLEO-H745ZI-Q board running @480MHz. Mozilla were not properly tested by me.

Had some more tries today, but can't connect to the board anyhow. I don't blame the samples though, as heavily controlled corporate machines might now help.

KozhinovAlexander · 2020-09-16T15:19:29Z

Under not able do you mean - the server does not starts or you have some other problems?

Server doesn't start indeed, but I'm at home with limited test possibilities, so I haven't checked much more.
I should be able to test more at the office tomorrow.

Probably following advice would be helpful for you:
My observations shows, that civetweb server samples needed too much time to start up (sometimes about > 30 sec.). This behavior can be seen on current master's branch civetweb implementation and also on implementation of this PR.
Following thing can help: Ping the IP of your server. And as soon as the response comes - go to the server over your web browser.
P.S.: The fastest browser on my MacBook was Chrome. The Safari needed much more time to load pages from embedded CivetWeb server on my NUCLEO-H745ZI-Q board running @480MHz. Mozilla were not properly tested by me.

Had some more tries today, but can't connect to the board anyhow. I don't blame the samples though, as heavily controlled corporate machines might now help.

Have you tested this PR on dev board connected to your local machine's Eth port, s.t. you can provide proper IPv4 to your board? If you want I can give you support over TeamViewer or so. Or we can Skype anytime tomorrow or today evening.

P.S.: My board runs connected to my local network router.

KozhinovAlexander · 2020-09-16T15:20:42Z

@lochej Can you test the sample also please?

lochej · 2020-09-16T16:22:11Z

@lochej Can you test the sample also please?

@Nukersson I performed a west update then fetched your branch locally to test.
Connected my board directly to my PC: Nucleo_H743ZI (no st-link/custom) + Killer ethernet E4200

I changed the IP config to accomodate for my static IP local ethernet link settings:

CONFIG_NET_CONFIG_MY_IPV4_ADDR="192.0.2.1"
CONFIG_NET_CONFIG_MY_IPV4_NETMASK="255.255.255.0"
CONFIG_NET_CONFIG_MY_IPV4_GW="192.0.2.2"
CONFIG_NET_CONFIG_PEER_IPV4_ADDR="192.0.2.2"

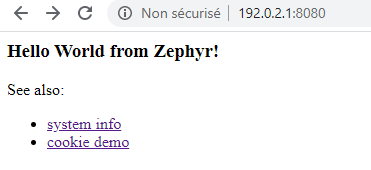

So far so good, the sample runs fine and displays the CivetWeb sample for each routes correctly:

Also network performance is pretty good:

ping -i 0.2 192.0.2.1 -c 30
--- 192.0.2.1 ping statistics ---
30 packets transmitted, 30 received, 0% packet loss, time 5877ms
rtt min/avg/max/mdev = 0.535/0.894/1.145/0.128 ms

Edit:
CivetServer is up and accessible 5ish seconds after releasing reset to the board. In fact, I press the refresh button of Chrome and release the reset at the same time. Note that I'm connected directly to the board

erwango · 2020-09-17T07:04:44Z

@Nukersson, I finally made it on nucleo_f429zi.
Runs successfully! And perf are not that bad neither (for a lower end platform vs H7)

--- 10.0.0.111 ping statistics ---
30 packets transmitted, 30 received, 0% packet loss, time 29382ms
rtt min/avg/max/mdev = 0.402/0.563/0.729/0.085 ms

lochej

LGTM, Works on Nucleo-H743ZI

erwango · 2020-09-17T07:30:13Z

@Nukersson Thanks to this PR. I'm adding the V2.5.0 milestone as this doesn't exactly fit the criteria to be merged in V2.4.0 release stabilization period (not strictly a "bug" fix).
It will be integrated at V2.5.0 merge window opening

KozhinovAlexander · 2020-09-17T07:55:29Z

@Nukersson Thanks to this PR. I'm adding the V2.5.0 milestone as this doesn't exactly fit the criteria to be merged in V2.4.0 release stabilization period (not strictly a "bug" fix).
It will be integrated at V2.5.0 merge window opening

I am very happy. Thank you for testing it also. Yes, I am agree - it should be merged into v2.5.

KozhinovAlexander · 2020-09-18T07:38:49Z

@Nukersson, I finally made it on nucleo_f429zi.
Runs successfully! And perf are not that bad neither (for a lower end platform vs H7)
--- 10.0.0.111 ping statistics ---
30 packets transmitted, 30 received, 0% packet loss, time 29382ms
rtt min/avg/max/mdev = 0.402/0.563/0.729/0.085 ms

��@erwango Have you observed ping between system startup and ping answer on your F4 board? How much time does it took, if yes?

erwango · 2020-09-18T07:40:49Z

@erwango Have you observed ping between system startup and ping answer on your F4 board? How much time does it took, if yes?

No, I haven't. If finding spare time today, I'll have a new try, but do not rely on it.

samples/net/sockets/civetweb/prj.conf

samples/net/sockets/civetweb/src/main.c

KozhinovAlexander · 2020-09-28T17:20:44Z

@pfalcon @tbursztyka Please provide review.
